15″ Android POS System
• Cortex A17, Quad Core 1.8GHz
• 2GB RAM / 8GB eMMC
• Android 8.1

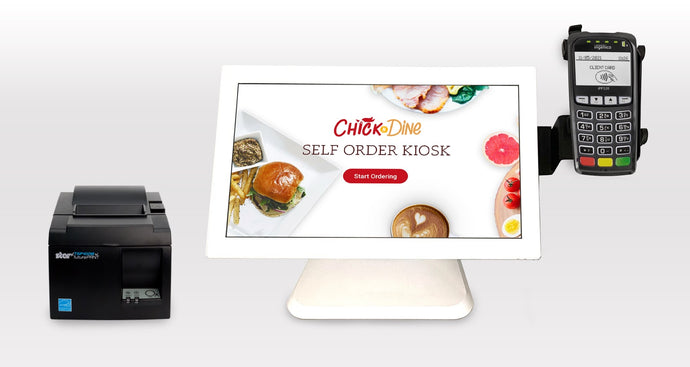

This white label Android kiosk also comes in black.
Includes: 15" Display, Star TSP143IIIU Printer, VESA pinpad bracket, Applova software configuration.
Download brochure
| HARDWARE |
| Display |
15.6” IPS LED Panel |
| Resolution |
1920×1080 (16:9 diagonal) |
| Touch Technology |
10 Point Capacitive |
| CPU |
Cortex A17, Quad Core, 1.8GHz |
| Memory |
2GB DDR3 SDRAM |
| Storage |
8GB eMMC |
| OS SUPPORT |
| Android |
Android 8.1, Oreo |
| OPTIONAL PERIPHERALS |
| MSR |
3 Tracks (Hardware key injectable available) |
| MSR+EMV |
N/A |
| Scanner |
2D Scanning module |
| Wallmount |
75x75mm VESA |
| EXTERNAL PORTS |
| USB |
USB 2.0 Type A x 5 |
| Micro USB |
Micro USB 2.0 OTG x 1 |
| Com |
RS232 x 2 (in RJ45 connector form) |
| Ethernet |
10/100/1000 Mbps LAN RJ45 x 1 |
| Audio I/O |
Headset + Microphone Jack x 1 |
| Camera |
Front facing 2M pixels (optional) |
| ENVIROMENT |
| Operating Temperature |
0 – 35 Cº |
| Relative Humidity |
10% – 90% (Non-Condensing) |
| Certification |
RoHS, REACH, ISO9002 |
| PACKAGE |
| Dimension |
41(W)x35(H)x10(D) mm |
| Weight |
1.36kg |
| MODEL |
DESCRIPTION |
|
| 15N-RM-A17-2G-8F-A6.1 |
15” Android POS with A17, 4G RAM, 8G Flash, Android 8.1 |
|
| PERIPHERALS |
DESCRIPTION |
|
| Android Module-MSR |
MSR Card Reader for Android Terminals (15N) |
|
| Module-Scanner |
Scanner Module for Android (10N, 15N, 10W) |
|
